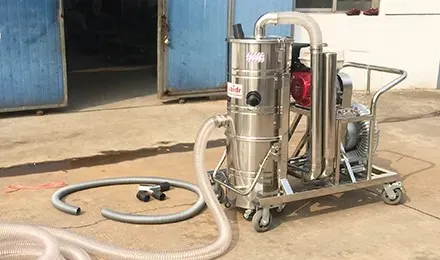

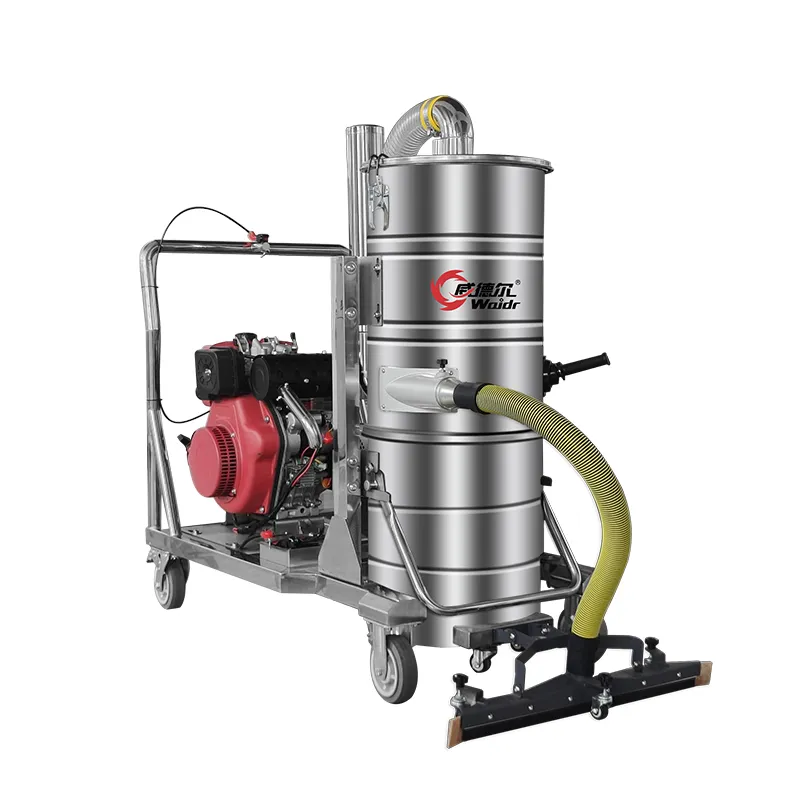

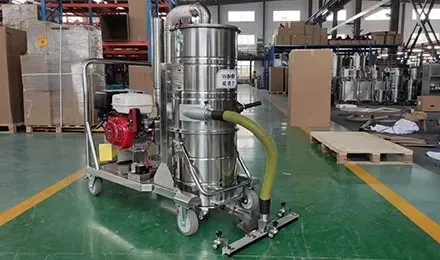

Built for heavy-duty outdoor cleaning where electricity isn't available. This rugged, diesel-powered unit delivers 320 mbar suction and 530 m³/h airflow to handle demanding debris collection.

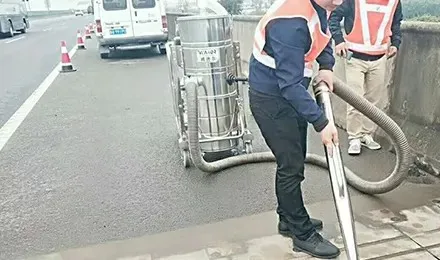

With a 100L stainless steel barrel, cyclonic pre-separation, and washable star-shaped filter (28,000 cm²), it's engineered for continuous operation in harsh conditions. Typical applications include construction sites, mining, and disaster recovery.
For similar high-performance needs, our gas powered industrial vacuum cleaners offer exceptional mobility and power. These industrial gas powered vacuum cleaners are ideal for environments where electrical power is limited or unavailable, providing reliable and efficient cleaning solutions for large-scale and remote tasks.
Model | CY-75J |
Power (KW) | Diesel |
Fuel tank capacity(L) | 5.5 |
Oil fuel(L) | 1.65 |
Minimum fuel consumption(L) | 0.32 |
Vacuum (mbar) | 320 |
Airflow (m3/h) | 530 |
Noise level (dB) | 83-89 |
Filter area (cm2) | 28000 |
Barrel capacity (L) | 100 |
Inlet (mm) | 50 |
Filter type | Star shape filter |
Machine weight (kg) | 135 |
Machine size (mm) | 1100*600*1450 |
1. Diesel engine, with strong suction, can meet most outdoor work. The pump can work long time
continuously and run smoothly.
2. Pressure relief valve: automatically open the compensation intake when the filter or suction is
blocked to protect the motor.
3. The star filter with filtering area of 28ooocm², and it is washable and repeatable.
4. The machine body is fully made of stainless steel metal with strong bearing capacity and can
adapt to different working conditions.
5. 10oL capacity detachable dust bucket, fast and convenient to dump waste.
6. Manual cleaning system: the machine is equipped with manual dust vibration device, which can
be easily shaken to clean the star shape filter, convenient and fast.
7. Cyclone separation system makes most of the dust particles fall directly to the bottom of the
barrel while being inhaled, which extends the service life of the filter.
