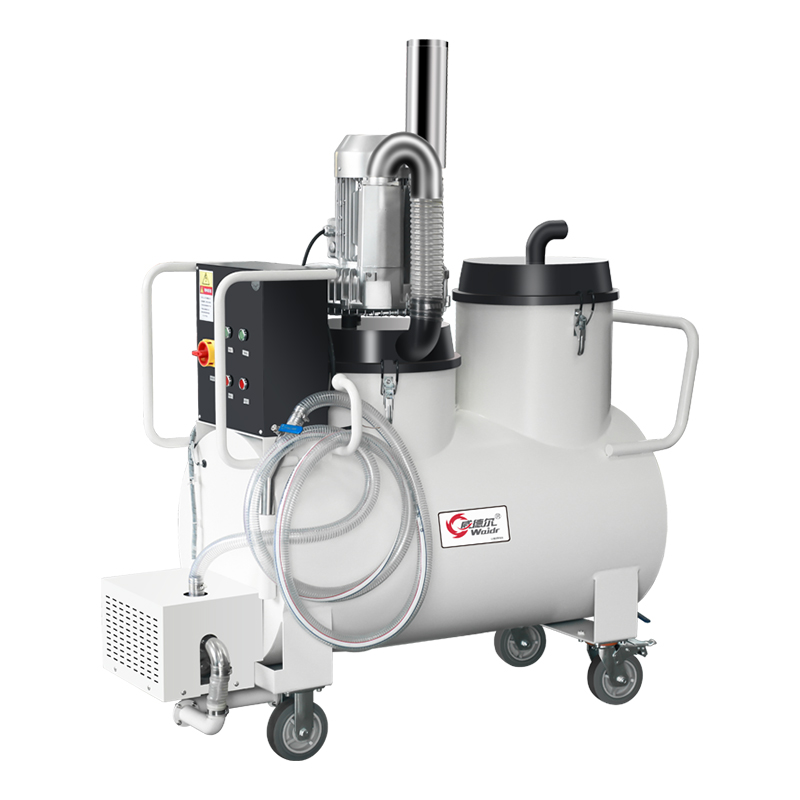

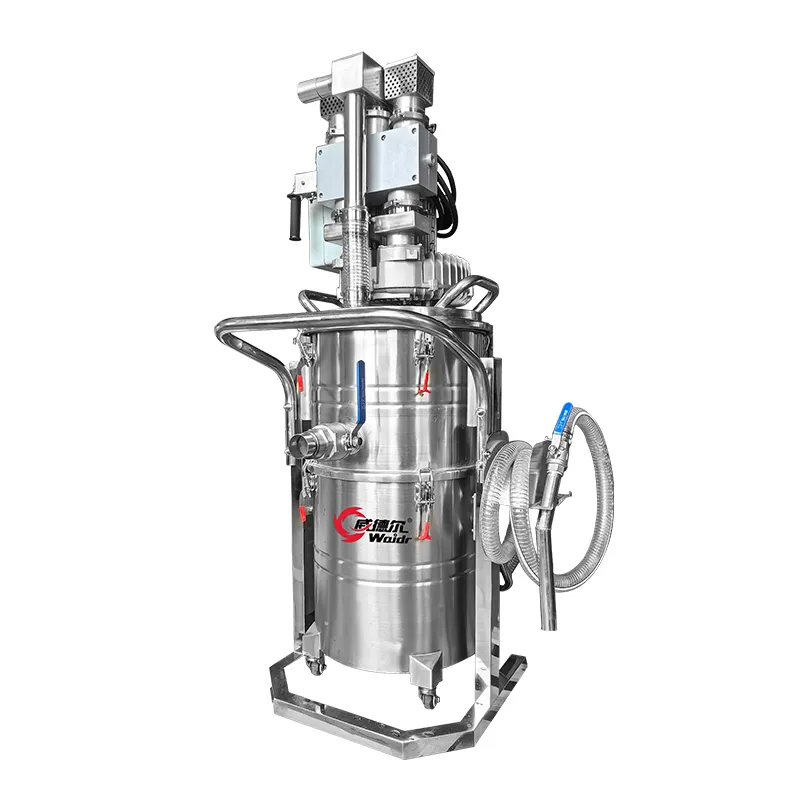

Engineered for extreme conditions, our OIL 3200-series delivers 270-290mbar suction with 3-4KW turbine motors for continuous metal chip and oil recovery. The 320L stainless steel tank integrates a solid-liquid separator with auto-oil-recovery pump (75L/min), while IP55-rated sealed construction resists fluids and sparks. Featuring NSK-bearing brushless fans and PU oil-resistant casters, it's ideal for machining centers, die-casting floors, and petroleum facilities needing 24/7 heavy-duty vacuum performance.
Model | OIL 3202 | OIL 3203 |
Voltage (V) | 380 | 380 |
Power (KW) | 3 | 4 |
Airflow (m3/h) | 318 | 318 |
Vacuum (mbar) | 270 | 290 |
Filter type | Solid-liquid Separator + Stainless steel HEPA | |
Noise level (dB) | 68 | 69 |
Barrel capacity (L) | 320 | |
Inlet(mm) | 50 | |
Pump power (W) | 750 | |
Pump vacuum (mbar) | 30 | |
Pump flow rate (L/m) | 75 | |
Pump stroke (m) | 30 | |
Pump inlet (mm) | 25 | |
Pump outlet (mm) | 25 | |
Pump speed (R/min) | 2800 | |
Protection class | IP55 | |
Separator volume (L) | 50 | |
Machine weight (kg) | 165 | 170 |
Machine Size (cm) | 176*64*138 | |
1. High pressure brush-less turbine fan, adopts dual frequency (50/60Hz) and wide voltage design, with NSK bearing. The fan has a long service life and the machine can work 24h/7 continuously.
2. It is equipped with a solid-liquid separator, which is convenient for separating particles from oil stains, and automatically recovers oil through the oil gun.
3. Compact design, with PU industrial casters, shock absorption, wear resistance, oil resistance, easy to move flexible.
4. Protection class IP55, insulation class F, the whole machine is sealed.

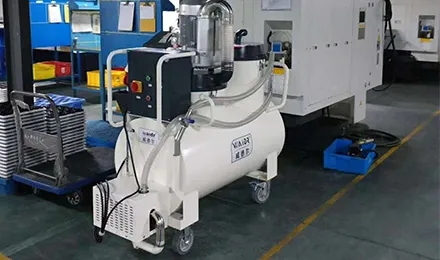

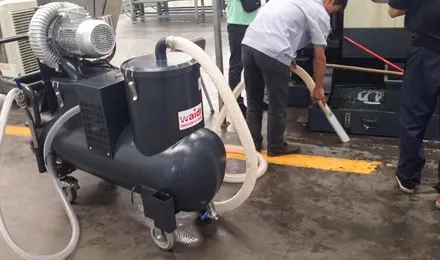

5. Working area: Oil fields, oil depots, machinery manufacturing, metal processing, sewage iron cutting and recycling, and supporting production lines or production equipment.
