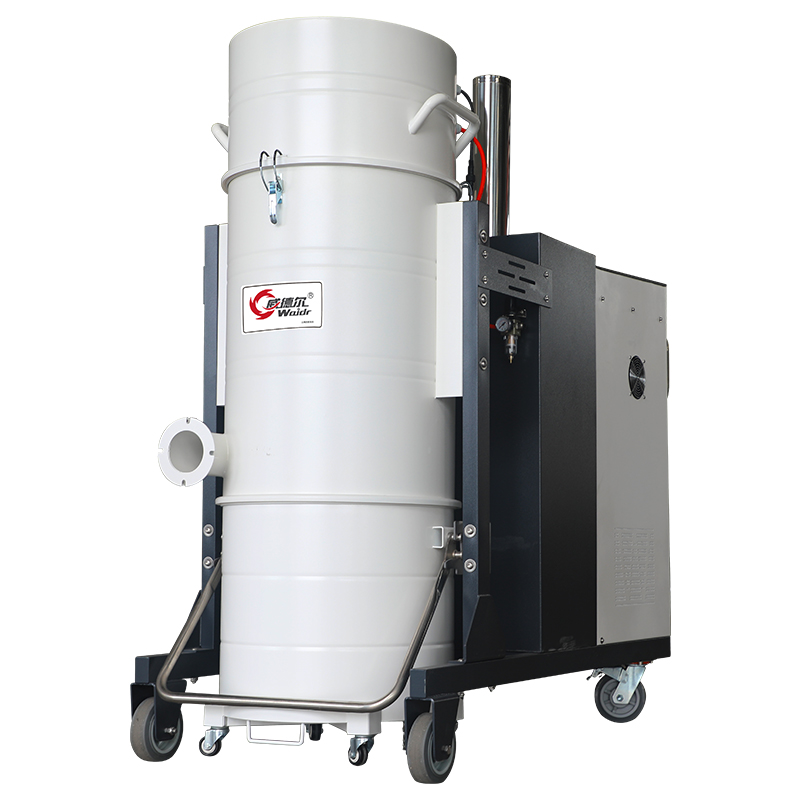

Engineered for extreme industrial applications, this heavy-duty vacuum delivers unmatched suction power with its 7.5KW+ motor and thick steel construction. Featuring fully automated operation via DELIX controls and self-cleaning pulse technology, it eliminates manual maintenance while offering customizable configurations for specialized industrial needs.
Model | WX75F | WX110F | WX125F | WX150F |
Voltage (V) | 380 | |||
Power (KW) | 7.5 | 11 | 12.5 | 15 |
Airflow (m3/h) | 700 | 900 | 1050 | 1370 |
Vacuum (mbar) | 270 | 280 | 290 | 250 |
Noise level (dB) | 73 | 74 | 75 | 78 |
Filter area (cm2) | 130000 | |||
Barrel capacity (L) | 120 | |||
Cable length (m) | 5 | |||
Inlet (mm) | 76 | |||
Filter type | 3 pcs PTFE filters | |||
Machine weight (kg) | 160 | 170 | 180 | 180 |
Machine size (mm) | 1700*940*1800 | |||
1. The turbine fan can work 24/7 continuously and run smoothly.
2. Pressure relief valve: automatically open the compensation intake when the filter or suction inlet is blocked to protect the motor.

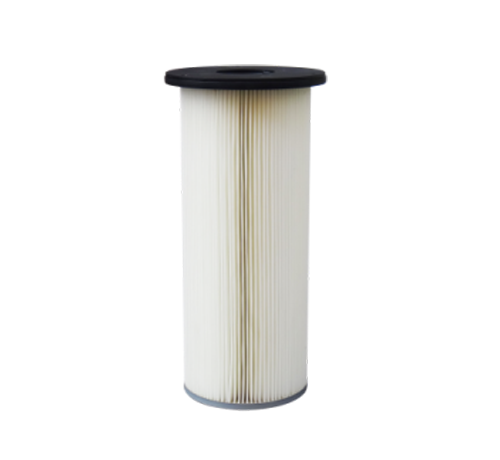

3. Equipped with 3 pcs PTFE coated filters with filter area up to 130000cm²;
4. The machine body is made of mild steel with strong bearing capacity and can adapt to different working conditions.
5. 120L large capacity detachable dust bucket, fast and convenient to dump waste.
6. Pulse cleaning system: by connecting the air source, the airflow will come from the reversing valve vent, and jet the filter to clean the filter. (Air compressor is optional.)
7. Cyclone separation system makes most of the dust particles fall directly to the bottom of the barrel while being inhaled, which extends the service life of the filter.
8. It can be used in conjunction with other devices, to be vacuuming which the working devices are running on the production line, which greatly improve work efficiency.
