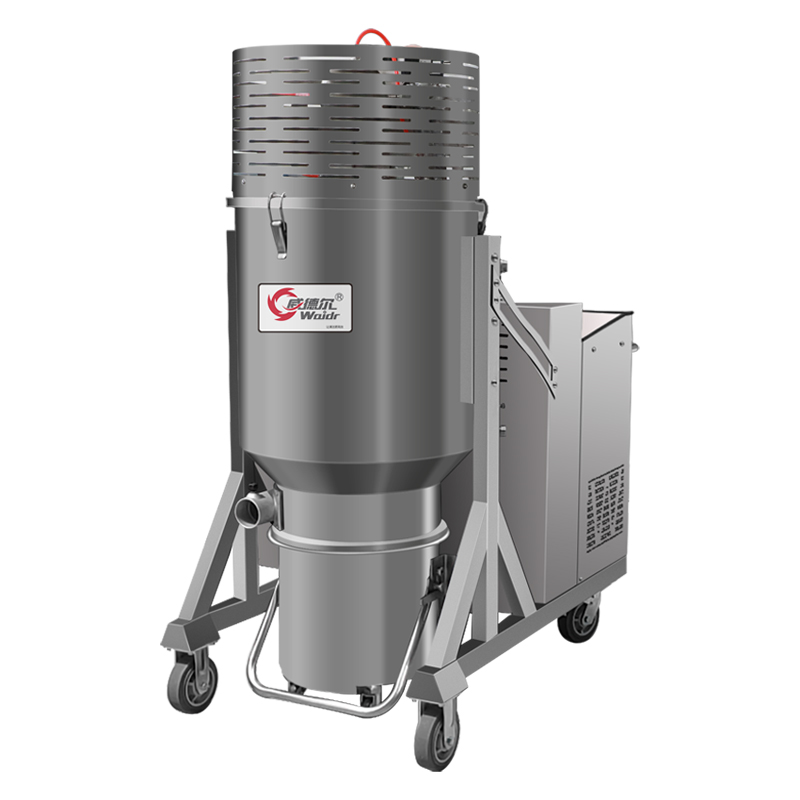

Waidr's HT Series industrial vacuums (3.0-7.5KW, 380V) handle extreme heat up to 600°C with all-stainless steel construction and 80,000cm² heat-resistant filters.
Pulse-cleaning system (compressor optional)
Cyclone separation + 110L refrigerated dual-wall barrel

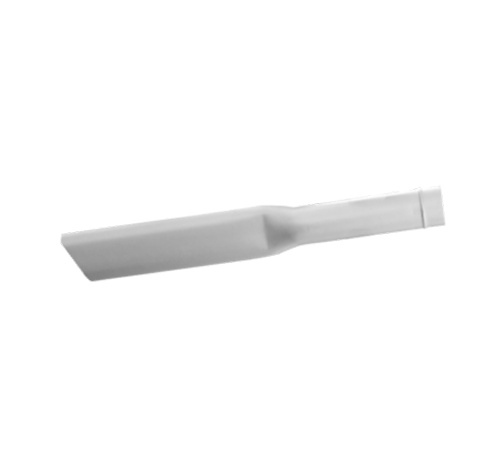

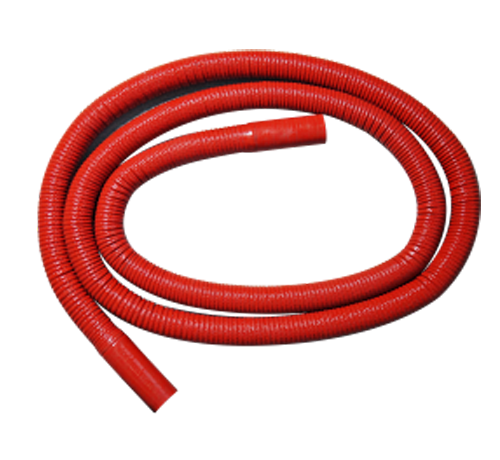

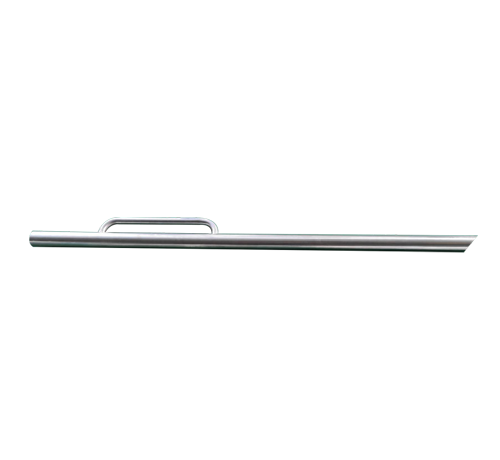

50mm heatproof hose & stainless steel accessories
7 safety protections including overheat/phase monitoring
Model | HT110/30 | HT110/40 | HT110/55 | HT110/75 |
Voltage (V) | 380 | |||
Power (KW) | 3.0 | 4.0 | 5.5 | 7.5 |
Airflow (m3/h) | 318 | 420 | 530 | 530 |
Vacuum (mbar) | 270 | 270 | 300 | 320 |
Noise level (dB) | 67 | 69 | 71 | 73 |
Filter area (cm2) | 80000 | |||
Barrel capacity (L) | 110 | |||
Cable length (m) | 5 | |||
Inlet (mm) | 50 | |||
Filter type | High Temperature Resistant Filter Bag | |||
Machine weight (kg) | 95 | 108 | 135 | 160 |
Machine size (mm) | 1420*700*1650 | |||
1. The turbine fan can work 24h continuously and run smoothly.
2. Delixi control system, with overheating, overload, phase protection function;

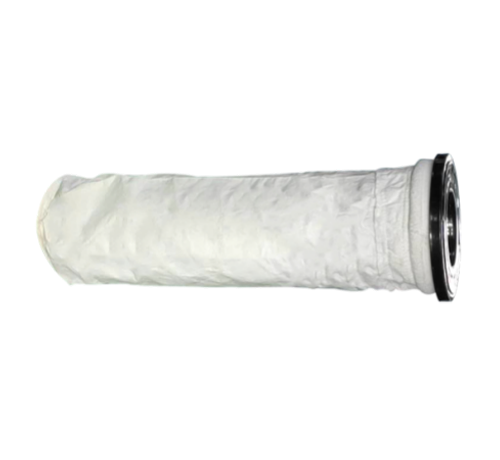

3. Equipped with 7 High temperature resistant filter bags, with filtering area of 80000cm²;
4. Pulse cleaning system: by connecting the air source, the airflow will come from the reversing valve vent, and jet the filter to clean the filter. (Air compressor is optional.)
5. The whole machine is made of stainless steel, the dust bucket is a double 2MM thick stainless steel plate, the middle of the refrigeration layer, reduce the temperature of the machine, can withstand 200℃-600℃ high temperature;
6. 110L capacity detachable dust bucket, fast and convenient to dump waste.
Cyclone separation system makes most of the dust particles fall directly to the bottom of the barrel while being inhaled, which extends the service life of the filter.
