The air-powered WX-EX vacuum cleaners provide flameproof operation (ATEX certified) in explosive environments. These maintenance-free systems require only 6-8kg compressed air to generate up to 230mbar suction with ultra-quiet 50-55dB operation. Key benefits:
Anti-static HEPA + bag filtration (22,000-44,000cm²)
Dry/wet vacuuming capability
Stainless steel construction (15-80L capacities)
No moving parts - ideal for continuous duty
Designed for chemical plants, grain silos, and oil refineries where electrical equipment is prohibited. Direct equipment interconnection allows simultaneous operation.

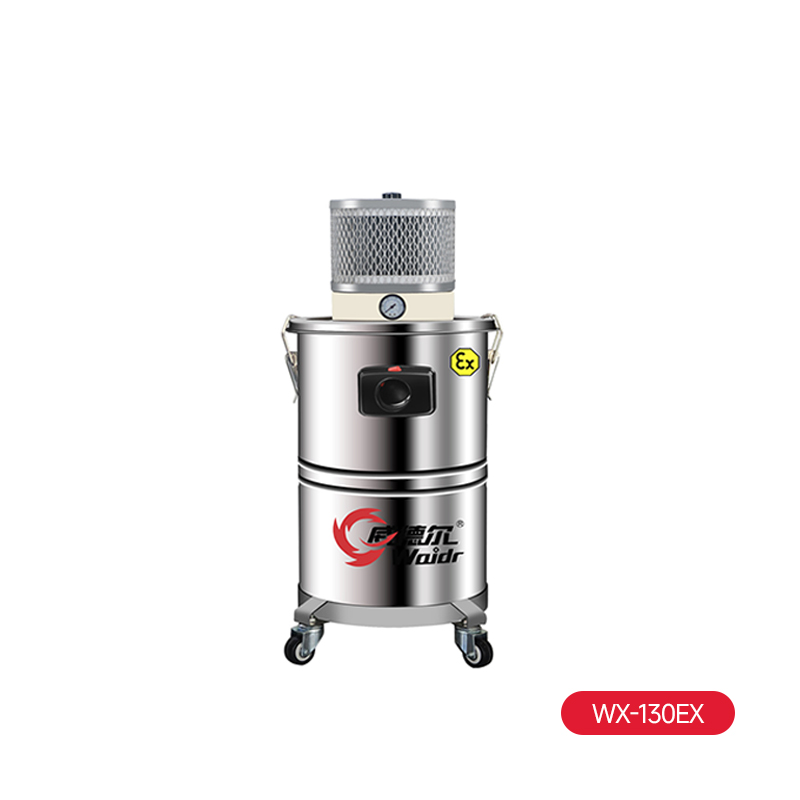

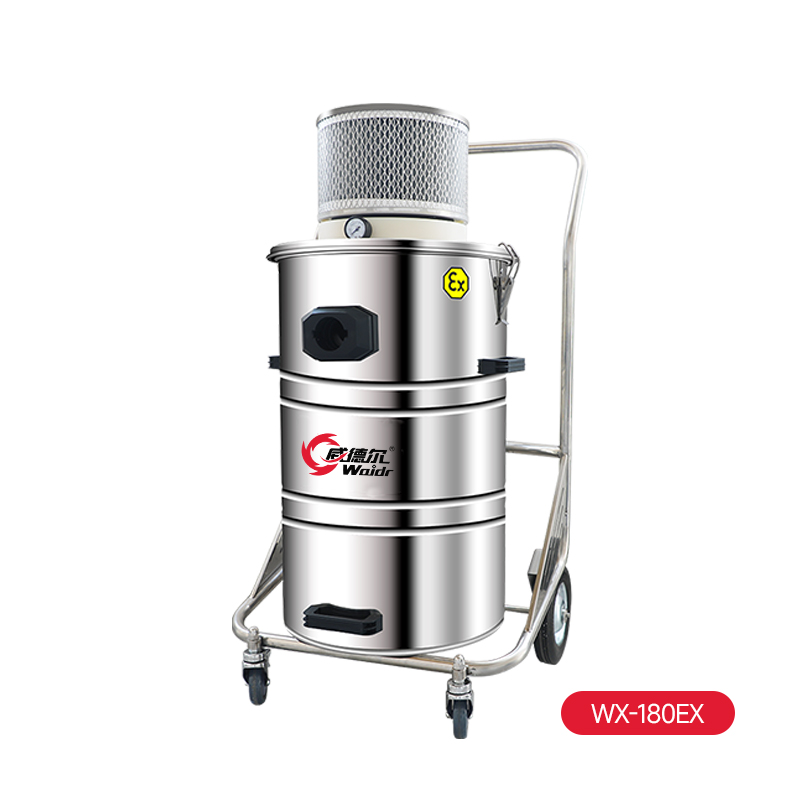

Model | WX-115EX | WX-130EX | WX-180EX |
Air supply (kg) | 6-8 | ||
Airflow (m³/h) | 159 | 159 | 256 |
Vacuum (mbar) | 175 | 175 | 230 |
Noise level (dB) | 50 | 50 | 55 |
Filter area (cm²) | 22000 | 22000 | 44000 |
Barrel capacity (L) | 15 | 30 | 80 |
Inlet (mm) | 36 | 36 | 40 |
Filter type | Anti-static HEPA + Filter Bag | ||
Machine weight (kg) | 10 | 11 | 27 |
Machine size (mm) | 400x400x680 | 400x400x800 | 600x650x1060 |
1. Vacuum generator: connected to the air source, through the vacuum generator to produce negative pressure in the barrel, to achieve dust suction conditions, can suction water, dry and wet dual use. With no operating components, capable of continuous operation, and no need much maintenance for the equipment.
2. Anti-static HEPA filter, with filter area up to 22000cm² and 44000cm², can be washed and used repeatedly, with non-woven dust filter, multi-layer filter fine dust and release clean air;
3. Stainless steel barrel body strong bearing capacity, can adapt to different working conditions;
4. Can be used with other equipment linkage, to achieve the work while vacuuming, improve working efficiency.
