Pneumatic explosion proof industrial vacuum cleaner
Pneumatic explosion proof industrial vacuum cleaner

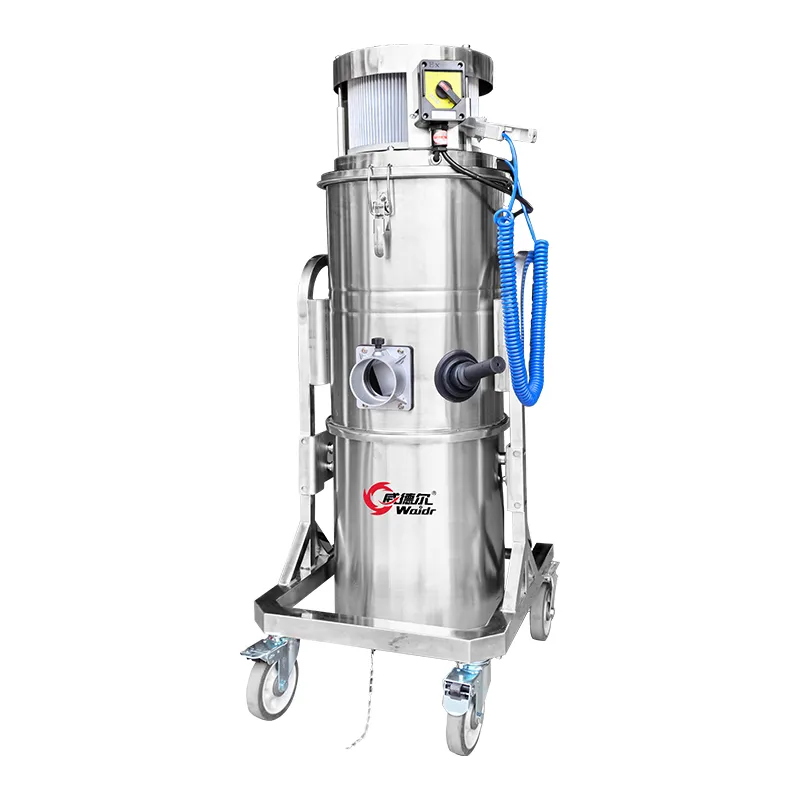

Pneumatic Explosion-proof Industrial Vacuum Cleaner

WX-190EX

The air-powered WX-EX vacuum cleaners provide flameproof operation (ATEX certified) in explosive environments. These maintenance-free systems require only 6-8kg compressed air to generate up to 350mbar suction with ultra-quiet 50-55dB operation. Key benefits:

  • Anti-static HEPA + bag filtration (32,000cm²)

  • Dry/wet vacuuming capability

  • Stainless steel construction (100L capacities)

  • No moving parts - ideal for continuous duty

Designed for chemical plants, grain silos, and oil refineries where electrical equipment is prohibited. Direct equipment interconnection allows simultaneous operation.


Specification of Pneumatic Explosion-proof Industrial Vacuum Cleaner


Model

WX-190EX

Air supply (kg)

6-8

Airflow (m³/h)

530

Vacuum (mbar)

350

Filter area (cm²)

32000

Barrel capacity (L)

100

Inlet (mm)

50


Features of Pneumatic Explosion-proof Industrial Vacuum Cleaner


1. Vacuum generator: connected to the air source, through the vacuum generator to produce negative pressure in the barrel, to achieve dust suction conditions, can suction water, dry and wet dual use. With no operating components, capable of continuous operation, and  no need much maintenance for the equipment.

2. Anti-static HEPA filter, with filter area up to 32000cm², can be washed and used repeatedly, with non-woven dust filter, multi-layer filter fine dust and release clean air;

3. Stainless steel barrel body strong bearing capacity, can adapt to different working conditions;

4. Can be used with other equipment linkage, to achieve the work while vacuuming, improve working efficiency.
