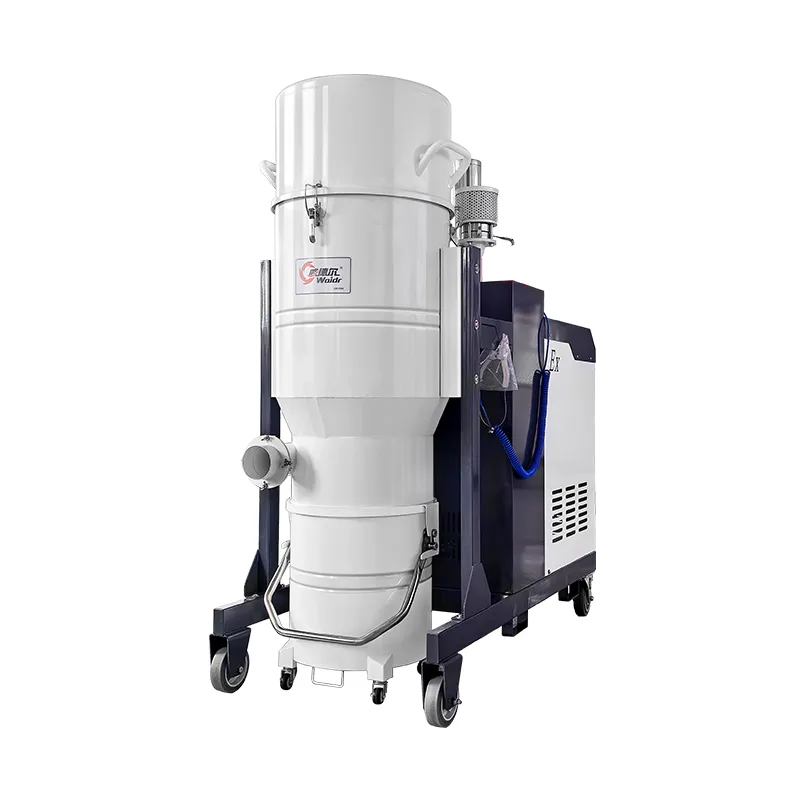

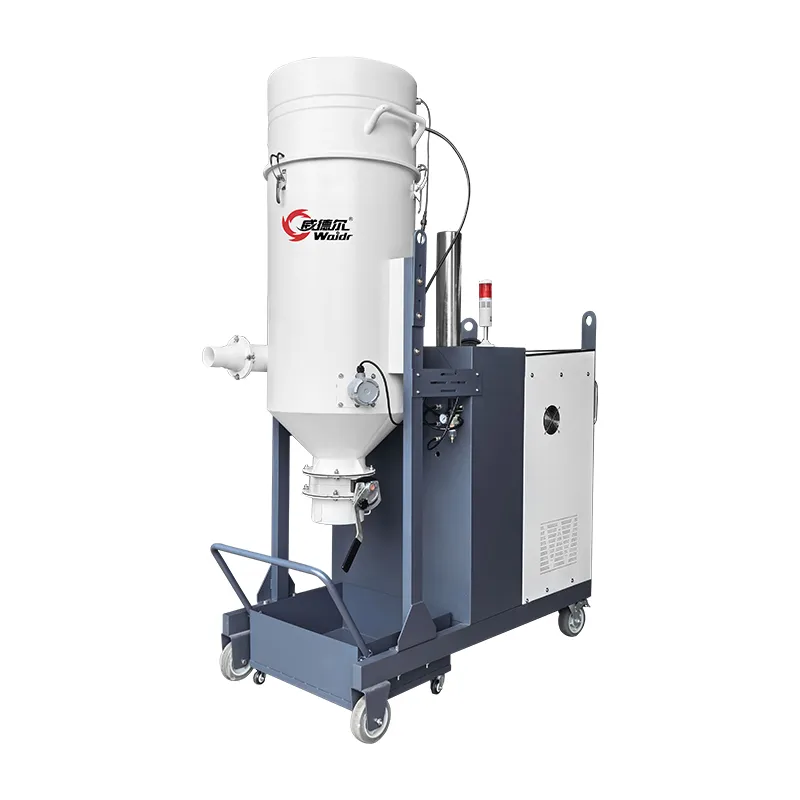

High-power-three-phase-industrial-explosion-proof-vacuum-cleaner, equipped-with-an-automatic-pulse-cleaning-system

WDREX-150, WDREX-204, WDREX-252

Engineered for extreme industrial applications, this heavy-duty vacuum delivers unmatched suction power with its 11KW+ motor and thick steel construction. Featuring fully automated operation via DELIX controls and self-cleaning pulse technology, it eliminates manual maintenance while offering customizable configurations for specialized industrial needs.

Specifications of High Power Three-Phase Industrial Vacuum Cleaner with Automatically Pulse Cleaning System



Model

WDREX-150WDREX-204
WDREX-252

Voltage (V)

380
380380

Power (KW)

111518.5

Airflow (m3/h)

90010501370

Vacuum (mbar)

280320320

Filter area (cm2)

132000132000132000

Barrel capacity (L)

120120120

Cable length (m)

555

Inlet (mm)

767676

Filter type

3 pcs PTFE filters3 pcs PTFE filters3 pcs PTFE filters



The features of a high-power three-phase industrial explosion-proof vacuum cleaner with an automatic pulse cleaning system


1. The turbine fan can work 24/7 continuously and run smoothly.

2. Pressure relief valve: automatically open the compensation intake when the filter or suction inlet is blocked to protect the motor.

3. Equipped with 3 pcs PTFE coated filters with filter area up to 132000cm²;

4. The machine body is made of mild steel with strong bearing capacity and can adapt to different working conditions.

5. 120L large capacity detachable dust bucket, fast and convenient to dump waste.

6. Pulse cleaning system: by connecting the air source, the airflow will come from the reversing valve vent, and jet the filter to clean the filter. (Air compressor is optional.)

7. Cyclone separation system makes most of the dust particles fall directly to the bottom of the barrel while being inhaled, which extends the service life of the filter.

8. It can be used in conjunction with other devices, to be vacuuming which the working devices are running on the production line, which greatly improve work efficiency.


High Power Three-Phase Industrial Vacuum Cleaner with Automatically Pulse Cleaning System Accessories_copy20260305101935

3 PCS PTFE Filters
3 PCS PTFE Filters
5m 76mm Transparent Steel Wire Hos
5m 76mm  Transparent Steel Wire Hos

Application Cases Gallery of High Power Three-Phase Industrial Vacuum Cleaner with Automatically Pulse Cleaning System_copy20260305101935
